ESP8266 Pinout Guide: Maximizing GPIO Use for Reliable IoT Projects

Navigating the GPIO (General Purpose Input/Output) pins of the ESP8266 is a fundamental step for anyone diving into IoT development. This powerful yet affordable microcontroller offers extensive connectivity, but its pin functionality can be confusing. Choosing the wrong pin can lead to projects that fail to boot, behave erratically, or damage components.

This definitive guide provides an authoritative, in-depth reference for the ESP8266 GPIO pins. You’ll find clear pinout diagrams for popular development boards, expert recommendations on which pins to use and avoid, and practical insights into their special functions. Our goal is to save you hours of debugging and help you build stable, efficient ESP8266-based devices from the start.

Understanding the ESP8266 12-E Chip Core

The heart of most modules is the ESP8266 12-E chip, which features 17 GPIO pins. However, not all these pins are accessible on every development board, and some have very specific or restrictive functions. It’s crucial to understand that the GPIO number (e.g., GPIO16) often differs from the pin label printed on your board (e.g., D0).

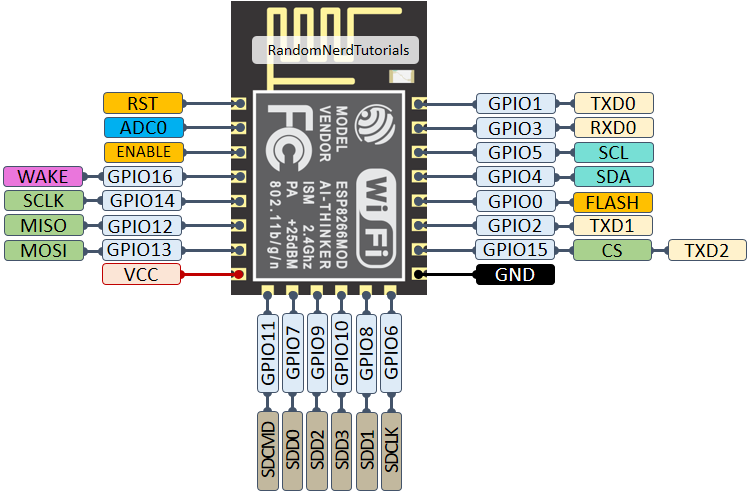

The following illustration shows the pinout of the bare ESP8266 12-E chip, which is essential if you’re designing a custom PCB or using the chip directly.

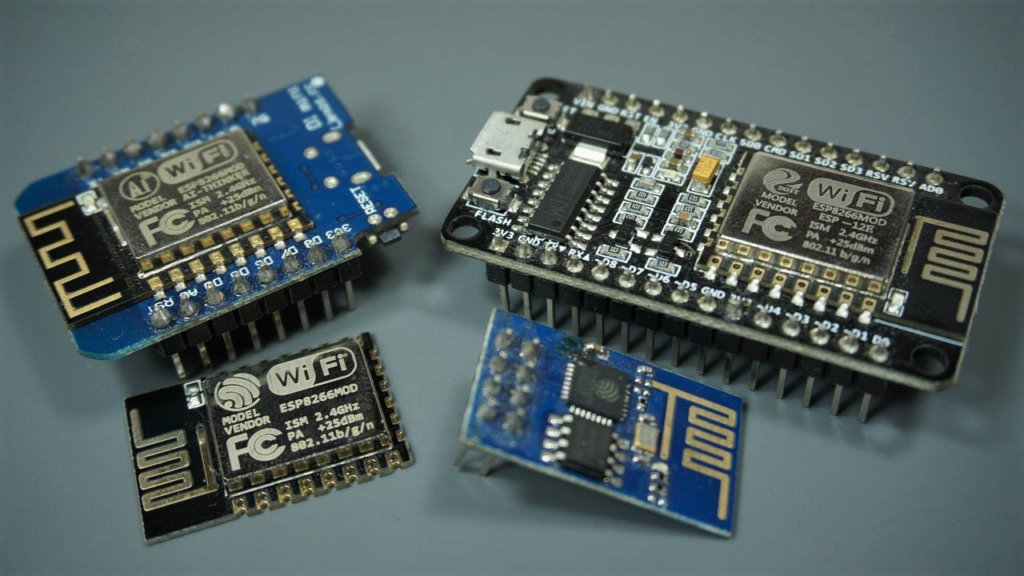

ESP8266 Development Board Pinout References

Different boards break out the chip’s pins in various configurations. Here are the pinouts for the three most common ESP8266 development platforms.

1. ESP-01 (ESP8266-01) Pinout

The compact ESP-01 module has limited accessible GPIOs, making pin selection critical.

• Key Pins: GPIO0 (Flash), GPIO2 (often onboard LED), TX, RX.

• Primary Use: Best for simple, space-constrained applications where only a couple of digital pins are needed.

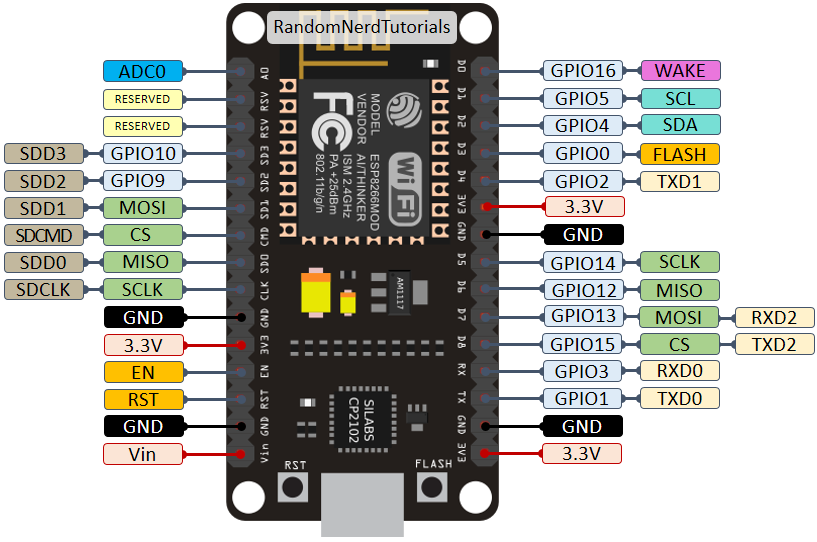

2. NodeMCU ESP8266-12E Kit Pinout

The NodeMCU is a developer favorite, offering many pins broken out to easy-to-use headers.

• Key Features: Exposes most usable GPIOs (D0-D8, SD2, SD3), a dedicated ADC pin (A0), and USB-to-serial programming.

• Primary Use: Ideal for prototyping and complex projects requiring multiple peripherals (sensors, displays, relays).

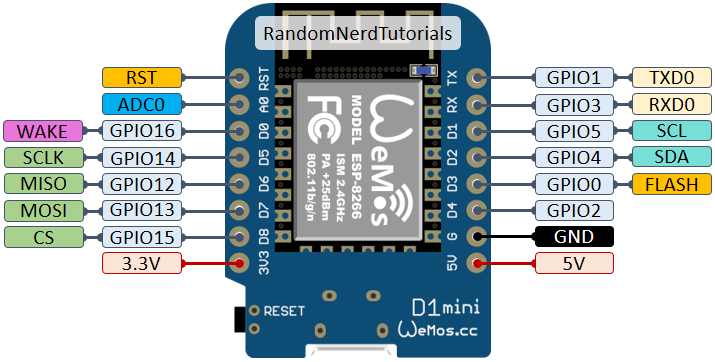

3. WeMos D1 Mini Pinout

The WeMos D1 Mini strikes a balance between size and capability, resembling an Arduino Nano form factor.

• Key Features: Similar pinout to NodeMCU but in a smaller footprint. Often includes a voltage divider on the ADC input.

• Primary Use: Perfect for compact, finished projects where a breadboard-friendly size is advantageous.

💡 Pro Tip: We provide a free, downloadable PDF pinout cheat sheet at the end of this article. Print it for quick reference at your workbench.

ESP8266 Peripherals and Capabilities

The ESP8266 is more than just digital pins. Its integrated peripherals include:

• 17 GPIOs with software-programmable pull-up/pull-down resistors.

• SPI (Serial Peripheral Interface) with dedicated pins.

• Software I2C (Inter-Integrated Circuit), implementable on almost any pin.

• I2S (Inter-IC Sound) for digital audio.

• UART (Universal Asynchronous Receiver-Transmitter) for serial communication.

• 10-bit ADC (Analog-to-Digital Converter) on one pin.

ESP8266 GPIO Analysis: Best Pins to Use (and Avoid)

This table is the core of the guide. It cross-references the common board labels (like D1) with the internal GPIO numbers and provides clear, experience-based recommendations.

Legend:

• ✅ Green (Safe): Generally safe to use for inputs and outputs.

• ⚠️ Yellow (Use with Caution): Functional but may have boot-time behavior; requires attention.

• ❌ Red (Not Recommended): Avoid using as general-purpose I/O; reserved for specific functions.

Critical GPIO Behaviors You Must Know

1. Pins Connected to Internal Flash (GPIO6-GPIO11):
These pins are internally wired to the chip’s flash memory. Do not use them for external connections, as it can crash the module.

2. Boot Mode and Pin States:
The ESP8266 reads specific pins during boot. Incorrect voltage levels can prevent it from starting.

• Pins That Must Be HIGH (or Floating) at Boot: GPIO0, GPIO2, GPIO15.

• Pins That Must Be LOW (or Floating) at Boot: GPIO15.

• Pins That Are HIGH at Boot (Can Trigger Relays): GPIO1, GPIO3, GPIO10, GPIO9, GPIO16.

3. Safe Pins for Critical Connections:
GPIO4 (D2) and GPIO5 (D1) are the most stable and problem-free. They have no special boot requirements and don’t emit spurious signals during startup, making them the best choice for directly driving relays, MOSFETs, or sensitive sensors.

Special Functions and Practical Applications

Deep Sleep Wake-Up (GPIO16)

To enable ultra-low-power deep sleep, connect GPIO16 (D0) to the RST pin. A low pulse on GPIO16 will then trigger a hardware reset, waking the chip.

Analog Input (ADC0 / A0)

The ESP8266 has a single 10-bit ADC. On development boards like the NodeMCU, a voltage divider typically scales the input range to 0-3.3V. To measure higher voltages (e.g., a 12V battery), you must add an external voltage divider circuit.

I2C Communication

While the ESP8266 lacks hardware I2C, robust software I2C can be implemented. The community standard is:

• GPIO5 (D1) as SCL

• GPIO4 (D2) as SDA
  Using these pins ensures compatibility with most libraries and shields.

PWM (Pulse Width Modulation)

Software PWM can be generated on all pins except GPIO16 (D0), with 10-bit resolution. This is perfect for dimming LEDs or controlling servo motors.

Interrupts

The ESP8266 supports hardware interrupts on any GPIO except GPIO16 (D0), allowing you to create responsive code that reacts to button presses or sensor triggers instantly.

Troubleshooting Common ESP8266 GPIO Issues

• Board Won’t Boot/Program:

  • Check GPIO0: It must be pulled HIGH (to 3.3V) for normal boot mode. A common mistake is having a sensor or button pulling it LOW.

  • Check GPIO15: It must be pulled LOW (to GND) at boot.

• Relay Cycles at Power-On: Avoid using pins that are HIGH at boot (GPIO1, GPIO3, GPIO16) for relay control. Use GPIO4 or GPIO5 instead.

• Unstable I2C or SPI: Ensure you are using the recommended pins and that your total wire length is not excessive. Use 4.7kΩ pull-up resistors on the I2C lines (SDA/SCL) to 3.3V.

Conclusion and Next Steps

Mastering the ESP8266 pinout is the key to transitioning from frustrating failures to successful, reliable projects. Always start your design by consulting a pinout reference, prioritizing the “safe” GPIOs (D1, D2, D5, D6, D7), and respecting the boot requirements of the cautionary pins.
