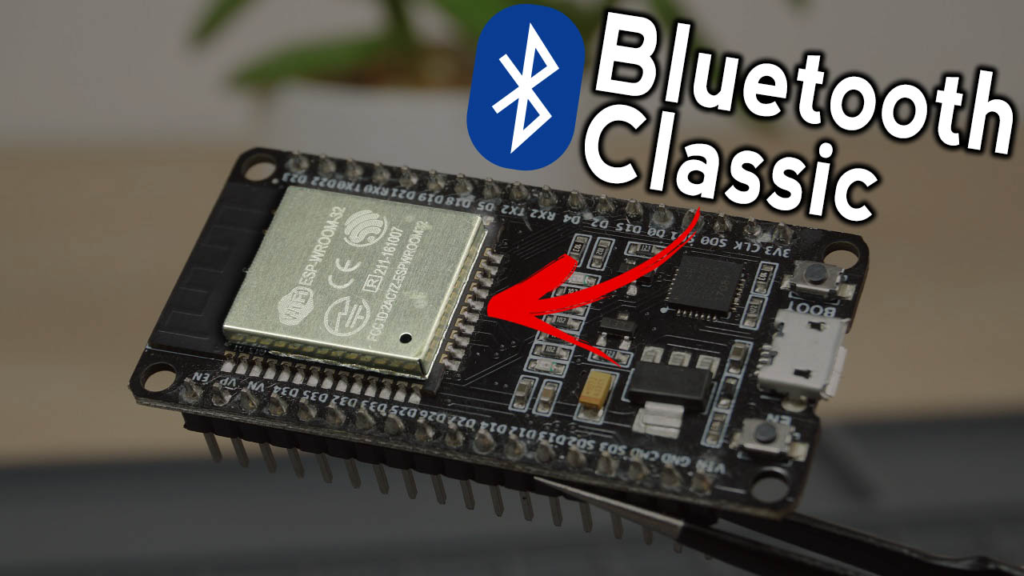

The Ultimate Guide to ESP32 Bluetooth Classic: Build Practical Wireless Projects with Arduino IDE

Are you looking for a reliable, high-bandwidth, and easy-to-implement wireless communication solution for your IoT projects? Compared to complex Wi-Fi setup and the BLE protocol stack, the built-in Bluetooth Classic functionality of the ESP32 offers a reliable alternative that’s as simple as using serial communication.

This comprehensive guide will take you from zero to proficient, teaching you how to leverage the powerful Bluetooth Classic feature of the ESP32 using the Arduino IDE for real-world applications. We’ll not only cover basic data exchange but also build a complete bi-directional communication system: controlling an LED on the ESP32 from your smartphone and receiving real-time sensor data from the ESP32 on your phone.

Part 1: Understanding ESP32 Bluetooth Classic — Why Choose It?

The ESP32 is a powerful microcontroller, and one of its key features is integrated dual-mode Bluetooth. Understanding the difference between the two modes is the first step to making the right choice.

• Bluetooth Classic: Ideal for continuous, higher data rate communication. It’s commonly used for audio streaming (e.g., Bluetooth speakers), file transfer, and traditional serial data communication (SPP). Its development model is extremely simple, almost zero-learning-curve for users familiar with Arduino Serial, essentially acting as a wireless serial cable.

• Bluetooth Low Energy (BLE): Optimized for intermittent, small data packet transmission with very low power consumption. Often used in beacons, health devices, etc. Its development involves Services and Characteristics, which is more complex.

For projects that require simple command control, continuous data logging transmission, or where you are migrating from modules like HC-05/06, Bluetooth Classic is the most straightforward and efficient choice.

Core Advantages for Developers:

• Simple Protocol: Uses the Serial Port Profile (SPP), compatible with most Bluetooth serial terminal apps.

• High Compatibility: Universally supported by Android, Windows, Linux, and other systems.

• Familiar API: In Arduino IDE, it uses the BluetoothSerial library, and its functions (read(), write(), print(), available()) are almost identical to the standard Serial object, making it very easy to learn.

Part 2: Getting Started: Hardware, Software, and Basic Communication

2.1 Prerequisites

• Hardware: An ESP32 development board (like ESP32 DevKit V1), a micro-USB cable, and an Android smartphone.

• Software:

  1. Arduino IDE (version 1.8.x or 2.0+).

  2. ESP32 Board Support Package installed in Arduino IDE. You can install it via: File -> Preferences -> Enter https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json in “Additional Boards Manager URLs” -> Tools -> Board -> Boards Manager -> Search for “esp32” and install.

  3. Android App: Install a “Serial Bluetooth Terminal” app (e.g., the “Serial Bluetooth Terminal” by Kai Morich on Google Play Store).

2.2 First Test: Serial Bridge

The Arduino IDE for ESP32 comes with excellent examples. Let’s run the simplest one to verify your environment.

1. Open Arduino IDE, go to File -> Examples -> BluetoothSerial -> SerialToSerialBT.

2. An example code will open. This code creates a bidirectional bridge between the hardware serial port (UART) and Bluetooth.

3. Upload the code to your ESP32. Ensure you’ve selected the correct board and port under the Tools menu.

4. Open the Serial Monitor (Tools -> Serial Monitor), set the baud rate to 115200. Press the EN/RST button on the ESP32.

5. You should see the message: “The device started, now you can pair it with bluetooth!”

Pairing and Connection:

1. On your Android phone, open Settings -> Bluetooth, search for new devices. You should find a device named “ESP32test” (the default name in the code). Pair with it.

2. Open the “Serial Bluetooth Terminal” app. Click the connect icon (usually a Bluetooth symbol) and select “ESP32test” from the list.

3. Test Communication:

   • Type a message in the app and send it. You will see it appear in the Arduino IDE Serial Monitor.

   • Type a message in the Serial Monitor’s input bar and press send. You will see it appear on your phone.

Congratulations! You have established a basic wireless serial link.

Part 3: Building a Practical Bi-Directional Control & Monitoring Project

Now, let’s build a more practical application. We will create a system where:

1. The ESP32 reads temperature from a DS18B20 sensor and sends it to the smartphone every 10 seconds.

2. The smartphone can send led_on and led_off commands to control an LED connected to the ESP32.

3.1 Circuit Connection

*Note: The DS18B20 is a 1-Wire digital temperature sensor. A 4.7kΩ pull-up resistor is recommended between its Data pin and VCC, though many modules already include it.*

3.2 Installing Required Libraries

In Arduino IDE, open Tools -> Manage Libraries... and install:

• OneWire by Paul Stoffregen

• DallasTemperature by Miles Burton

3.3 The Complete Arduino Sketch

Below is the well-commented code that implements all the functionalities. You can copy and upload it after installing the libraries and setting up the circuit.

/*
 * ESP32 Bluetooth Classic: Sensor & Control Project
 * Reads temperature from DS18B20 and sends to phone.
 * Controls LED based on 'led_on'/'led_off' commands from phone.
 */

#include "BluetoothSerial.h"
#include <OneWire.h>
#include <DallasTemperature.h>

// Configuration check for Bluetooth
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED)
#error Bluetooth is not enabled! Please run 'make menuconfig' to enable it
#endif

// Initialize Bluetooth Serial object
BluetoothSerial SerialBT;

// Pin Definitions
const int ledPin = 25;       // GPIO for LED
const int oneWireBus = 32;   // GPIO for DS18B20 data

// Setup for DS18B20 sensor
OneWire oneWire(oneWireBus);
DallasTemperature sensors(&oneWire);

// Variables for data handling
String incomingMessage = "";     // Stores the command from phone
float tempC, tempF;              // Holds temperature values
unsigned long previousMillis = 0;// Timer for periodic updates
const long interval = 10000;     // Send data every 10 seconds (10000 ms)

void setup() {
  // Initialize hardware
  pinMode(ledPin, OUTPUT);
  digitalWrite(ledPin, LOW); // Start with LED off
  Serial.begin(115200);

  // Initialize temperature sensor
  sensors.begin();

  // Start Bluetooth with a custom name
  SerialBT.begin("ESP32_Climate_Controller"); // Rename your device!
  Serial.println("Bluetooth device is ready for pairing. Name: 'ESP32_Climate_Controller'");
}

void loop() {
  unsigned long currentMillis = millis();

  // TASK 1: Send temperature readings periodically
  if (currentMillis - previousMillis >= interval) {
    previousMillis = currentMillis; // Save the last time we sent data

    sensors.requestTemperatures(); // Send command to get temperatures
    tempC = sensors.getTempCByIndex(0); // Read temperature in Celsius
    tempF = sensors.getTempFByIndex(0); // Convert to Fahrenheit

    // Create a formatted string
    String dataString = "Temperature: " + String(tempC) + "°C | " + String(tempF) + "°F";

    // Send via Bluetooth and print to Serial Monitor for debugging
    SerialBT.println(dataString);
    Serial.println("Sent: " + dataString);
  }

  // TASK 2: Check for incoming commands from phone
  if (SerialBT.available()) { // If data is available to read from Bluetooth
    char incomingChar = SerialBT.read(); // Read a single character
    Serial.write(incomingChar); // Echo it to Serial Monitor (for debugging)

    if (incomingChar != '\n') {
      // If it's not the end-of-line character, add it to the message string
      incomingMessage += incomingChar;
    } else {
      // End of line -> a complete command has been received
      incomingMessage.trim(); // Remove any extra whitespace (like carriage return '\r')

      Serial.print("Command Received: '");
      Serial.print(incomingMessage);
      Serial.println("'");

      // Process the command
      if (incomingMessage == "led_on") {
        digitalWrite(ledPin, HIGH);
        SerialBT.println("LED Status: ON"); // Send confirmation back to phone
        Serial.println("LED turned ON.");
      } else if (incomingMessage == "led_off") {
        digitalWrite(ledPin, LOW);
        SerialBT.println("LED Status: OFF");
        Serial.println("LED turned OFF.");
      } else {
        // If the command is not recognized, send an error message
        SerialBT.println("ERROR: Unknown command. Use 'led_on' or 'led_off'.");
        Serial.println("Unknown command received.");
      }

      incomingMessage = ""; // Clear the string to receive the next command
    }
  }

  // Small delay to prevent overwhelming the processor
  delay(20);
}

3.4 How It Works & Testing

1. Upload the Code: After wiring, upload the sketch to your ESP32.

2. Monitor Serial: Open the Serial Monitor (115200 baud). You’ll see the ready message.

3. Connect Phone: On your phone’s Bluetooth settings, forget the old “ESP32test” and pair with the new “ESP32_Climate_Controller”. Connect via the Serial Bluetooth Terminal app.

4. Automatic Data Reception: You should see temperature readings appear in the terminal app every 10 seconds.

5. Send Control Commands: In the app’s text input field, type led_on and send. The LED on GPIO 25 should light up, and you’ll receive a “LED Status: ON” confirmation on the phone. Sending led_off will turn it off.

Part 4: Expanding Your Project & Advanced Considerations

You’ve built a fundamental framework. Here’s how to extend it and tackle common challenges.

4.1 Project Expansion Ideas

• Control Multiple Outputs: Add more LEDs, relays, or servos. Use commands like relay1_on, servo_90.

• Send More Sensor Data: Integrate a DHT22 (humidity), BMP180 (pressure), or motion sensor (PIR). Format and send all data as a JSON string for easy parsing on a phone app (e.g., {"temp":23.5, "humidity":65}).

• Create a Simple Chatbot: Program the ESP32 to respond to specific questions (e.g., “temp?” -> it sends temperature; “status?” -> it sends GPIO states).

• Log Data to Phone: Let the phone app log all received sensor data to a file for long-term analysis.

4.2 Troubleshooting Common Issues

4.3 Bluetooth Classic vs. BLE: When to Choose What?

• Choose Bluetooth Classic if: You need continuous data streaming, are sending larger packets (e.g., files, images for displays), prioritize development simplicity, or need compatibility with traditional serial protocols.

• Choose BLE if: Your project is battery-powered and needs to run for months, only needs to send tiny bursts of data occasionally (like a sensor reading every minute), or needs to interact with modern smartphones in a standardized, low-power way (like iBeacon).

Conclusion

You have now successfully harnessed the power of ESP32‘s Bluetooth Classic. You’ve moved from a simple serial bridge to a practical, bi-directional control and monitoring system. The key takeaway is that BluetoothSerial makes wireless communication as intuitive as writing to a serial port.

The framework provided here is a springboard. By integrating different sensors and actuators, and processing commands creatively, you can build anything from a wireless weather station to a smart home controller. Remember to explore the BluetoothSerial library documentation for advanced features like checking connection status or setting a PIN code.

Next Steps: Challenge yourself to modify the code to control a servo motor or send data from multiple sensors. To dive deeper into the ESP32‘s other wireless capability, consider exploring our tutorial on ESP32 Wi-Fi as a Web Server for controlling devices over your local network through a browser.
