PCB Assembly Services
Volume surface mount capabilities
PCB Assembly Capability
Our state-of-the-art assembly equipment enable us to meet all your PCBA needs under one roof in an inexpensive way, our Printed Circuits Boards Assembly Capability includes but not limited to what are listed below, as we are updating our equipment constantly to keep us on the cutting edge. If your PCB Assembly demands are beyond these capabilities, please contact us at service@diyipcb.com, we will respond if we can do or not within 24 hours.
[wpdatatable id=1]
Various testing method will be applied to the assembled boards before the final shipment::
- Visual inspection: general quality check.
- X-ray Inspection: checks for BGAs, QFN and bare circuit boards.
- AOI Testing: checks for solder paste, 0201 components, missing components and polarity.
- ICT (In-Circuit Test).
- Functional test (Following your test procedures).
PCBWay’s production facilities are ISO9001 certified to ensure we go beyond your expectations.
- ISO9001 certified
- IPC610－D Test specification
- Pass rate ≥99.5%
- Quality complaint rate ≤ 0.1%
Our list of printed circuit board assembly capabilities allows our PCB customers to have the convenience of a “One Stop Solution” for their manufacturing and assembly needs.

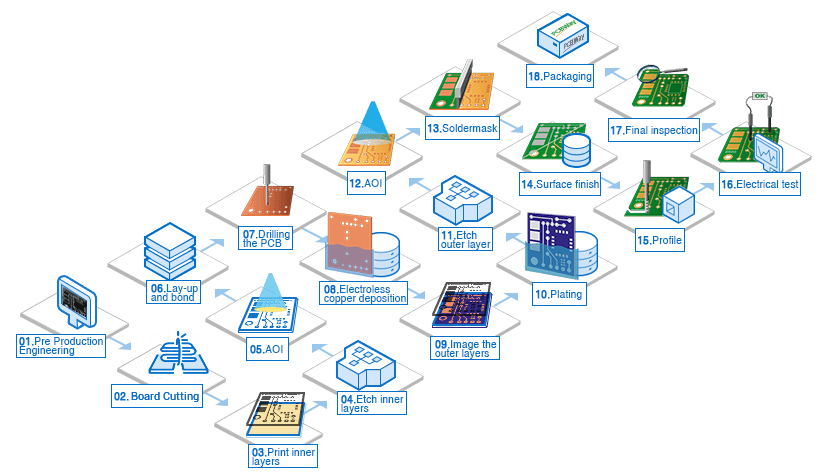

Automated PCB Assembly-line AOI (IPC610D)- Cut errors & rework... before problems even start
Samples were 100% X-RAY-ray inspection to ensure the reliability of each ball BGA
KIC furnace temperature tester: furnace temperature control at ± 0.1 °C to ensure the quality of each board welding
SMT Automatic first piece tester to ensure that each RC component of the parameters within the standard range
High-definition CCD microscopy does not miss the subtle quality and safety hazards
Product function analysis equipment to ensure that the test function of the rapid failure of maintenance
