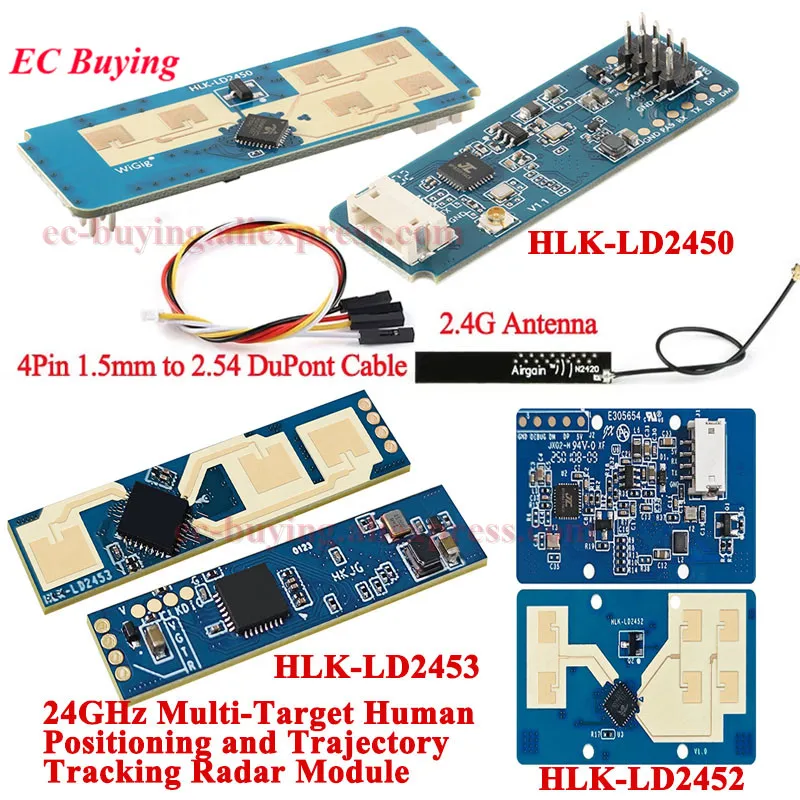

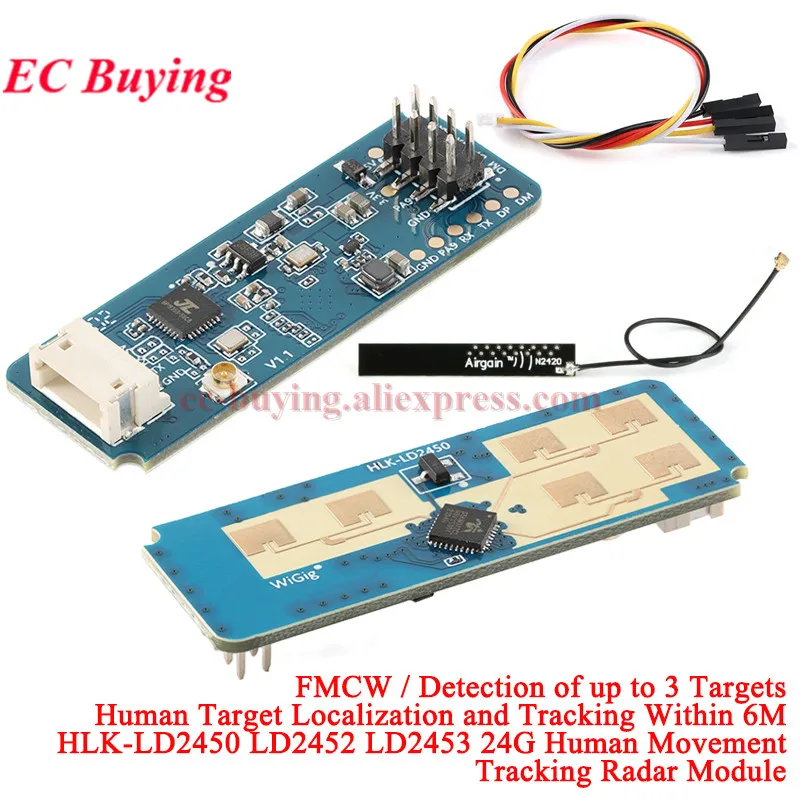

Hi-Link mmWave radar modules for motion tracking and indoor automation projects. Select HLK-LD2450, LD2452 or LD2453 and the required pack quantity. Cable, antenna and connector options are accessories only; their specifications differ from the radar modules.
1. Product introduction

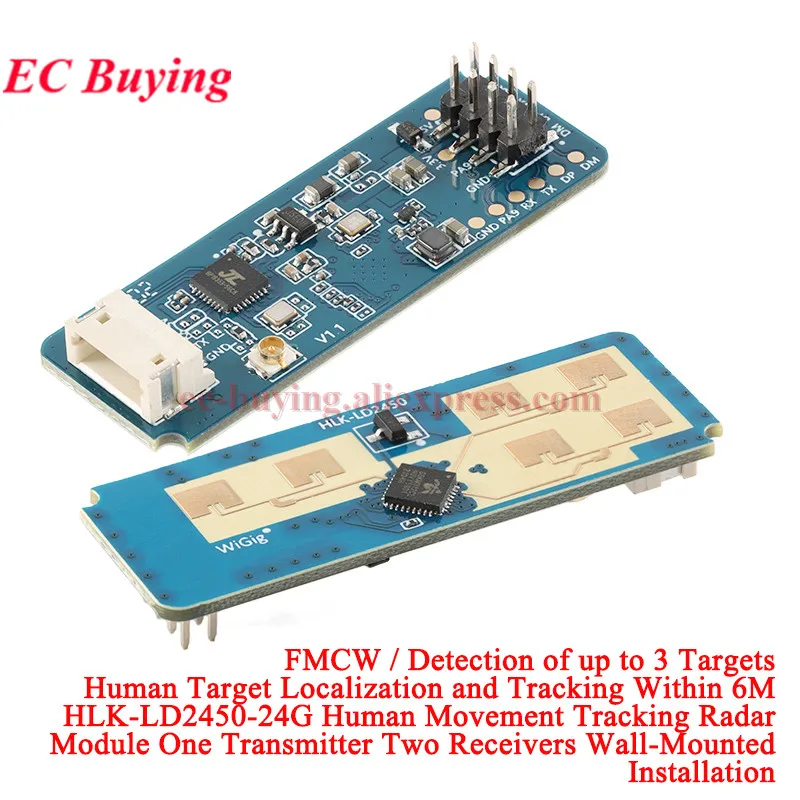

Motion target tracking is to track the position of the moving target in the region in real time, and realize the distance, angle and speed measurement of the moving target in the region.The LD2450 is a motion target tracking sensor module from the Hilink 24G millimetre wave radar series, which includes extremely simplified 24 GHz radar sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
The sensor hardware consists of an AloT millimetre wave radar chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the radar chip’s proprietary advanced signal processing technology.
It supports serial output of detection data, which is plug-and-play and can be flexibly applied to different smart scenarios and end products.
2. Product Features
- 24 GHz ISM band
- Integrated intelligent millimeter wave radar chip and intelligent algorithm firmware
- Precise motion target localization and tracking
- Longest detection range 6m
- Ultra-small module size: 15mm x 44mm
- Wall mounting
- Azimuth angle ±60°, pitch angle ±35°
- The ultimate cost-effective choice
- Multiple connection options with pin and socket interface
3. Solution advantages
LD2450 human body sensing module adopts 24GHz millimeter wave radar sensor technology, compared with other programs, has obvious advantages in human body sensing applications:
1. In addition to sensitive sensing of the movement of the human body, for the traditional program can not identify the micro-movement of the human body can also be sensitive to sense;
2. Good environmental adaptability, the induction effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;
3. Good shell penetration, can be hidden inside the shell work, no need to open holes in the product surface, improve the product aesthetics;
4. Application scenarios
The LD2450 motion target tracking sensor can accurately locate and track targets and is widely used in various AloT scenarios, covering the following types:
Smart Home
Sensing the distance and angle of the human body, reporting the detection results for the main control module to intelligently control the operation of air conditioners, fans and other home appliances.
Smart Business
Position sensing, within the set position interval to identify the human body approaching or moving away, timely lighting or closing the screen.
Bathroom
Smart toilet accurately controls the automatic opening and closing of the toilet lid.
Smart Lighting
Identify and sense the human body, precise position detection, can be used in home lighting devices (sensor lamps, desk lamps, etc.).
5. Hardware description

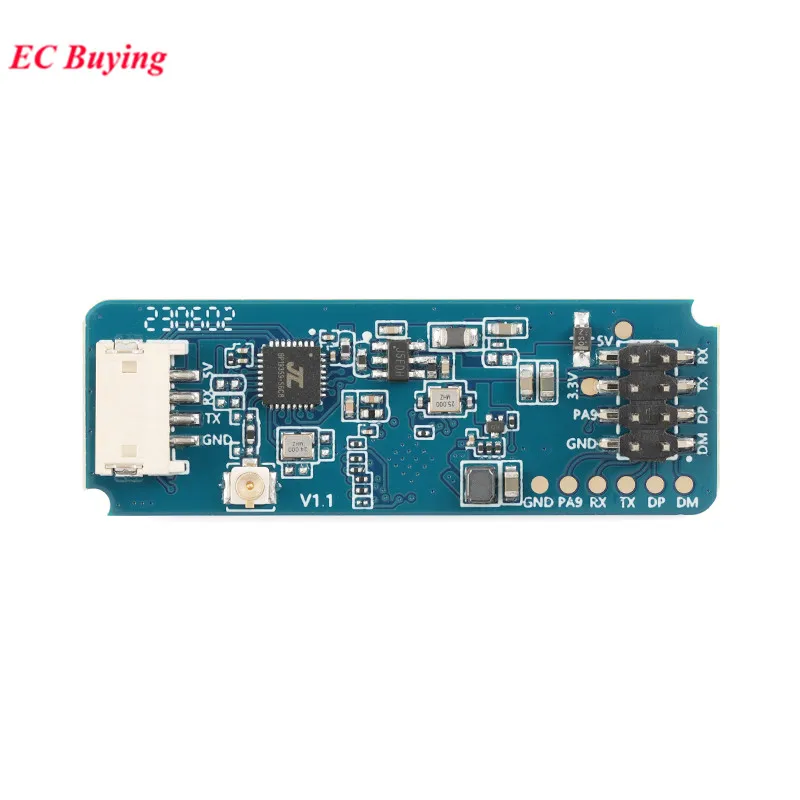

The module provides two kinds of external interfaces, socket and pin, both of which have a serial port and a power supply port, so users can choose to use either of them as needed.
The dimensions of the pin interface are shown below:
Socket interface dimensions are shown below:
Product Description
Target tracking refers to the real-time tracking of a target’s location within a given area, enabling distance, angle, and velocity measurement.

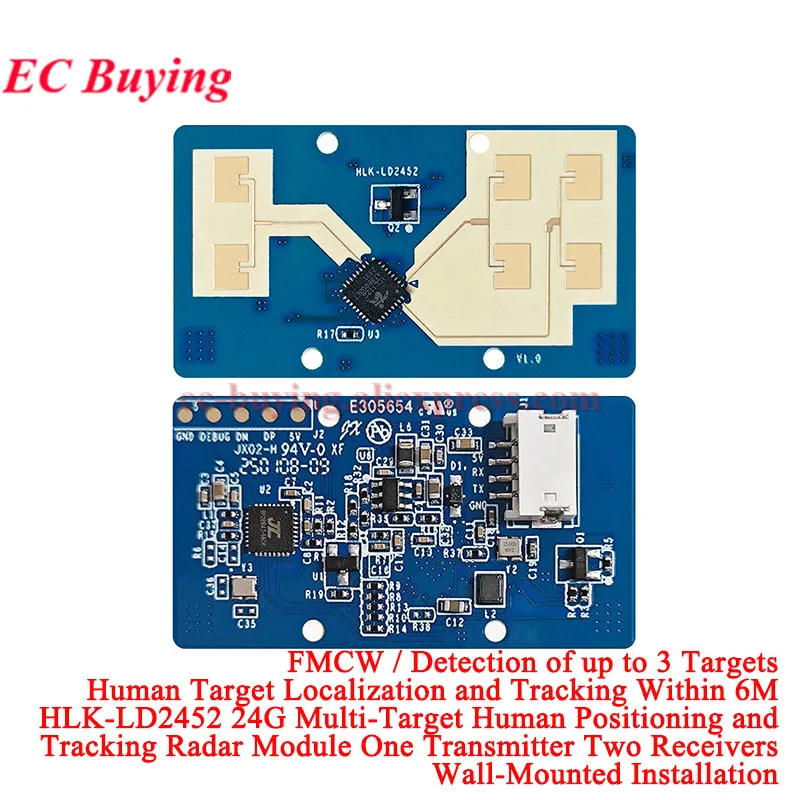

HLK-LD2452 is a high-precision multi-target recognition sensor. This solution is primarily used in common indoor scenarios such as homes, offices, and hotels to achieve the location tracking of multiple people. The sensor hardware consists of an AIoT millimeter-wave radar chip, a high-performance microstrip antenna with one transmitter and two receivers, a low-cost MCU, and peripheral auxiliary circuitry. The intelligent algorithm firmware utilizes FMCW waveforms and advanced signal processing technology proprietary to the millimeter-wave radar chip.
The main features of the HLK-LD2452 sensor are as follows:
24 GHz ISM band
Integrated intelligent millimeter-wave radar single chip and intelligent algorithm firmware
Precise target localization and tracking
Ultra-small module size
HLK-LD2452 dimensions: 23 mm x 42 mm
Ambient temperature: -40℃ to 85℃
5V single power supply, compatible with 3.3V power supply
Maximum detection range: 6 m
Azimuth ±60°, Elevation ±30°
Wall-mounted installation
Maximum detection of 3 targets

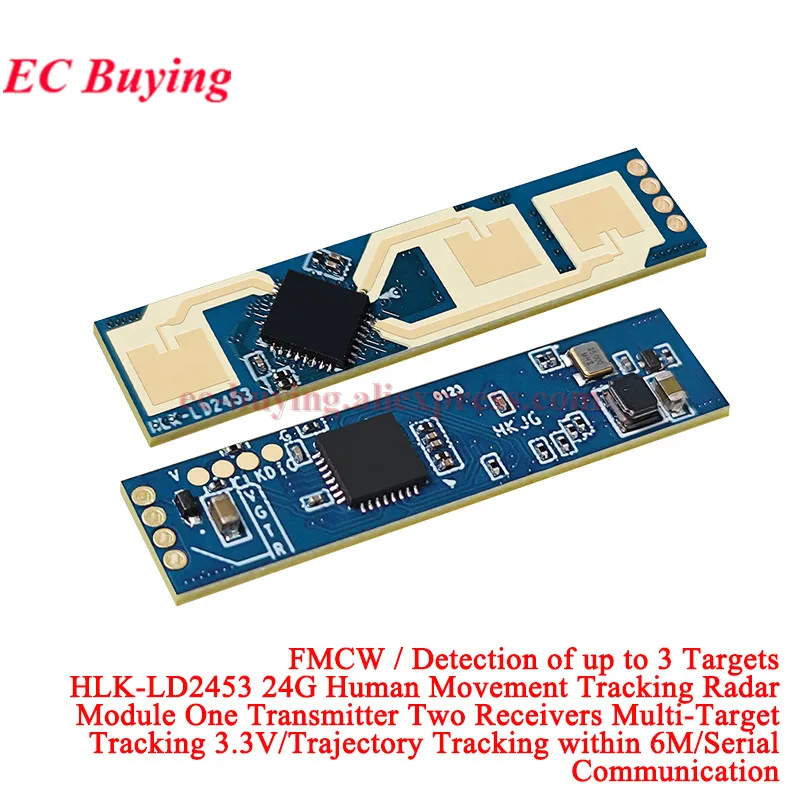

HLK-LD2453 is a high-precision multi-target recognition sensor. This solution is primarily used in common indoor scenarios such as homes, offices, and hotels to achieve the location and tracking of multiple people. The sensor hardware consists of an AIoT millimeter-wave radar chip, a high-performance microstrip antenna with one transmitter and two receivers, a low-cost MCU, and peripheral auxiliary circuitry. The intelligent algorithm firmware utilizes FMCW waveforms and advanced signal processing technology proprietary to the millimeter-wave radar chip.
The main features of the HLK-LD2453 sensor are as follows:
24 GHz ISM band
Integration of intelligent millimeter-wave radar single chip and intelligent algorithm firmware
Precise target location and tracking
Ultra-small module size
HLK-LD2453 dimensions: 7mm x 30mm
Ambient temperature: -20℃ to 70℃
3.3V power supply
Maximum detection range: 6 m
Azimuth ±40°, Elevation ±30°
Wall-mounted installation
Maximum detection of 3 targets
Application scenarios
Smart Home: Sensing the distance and angle of a person, reporting the detection results to the main control module for intelligent control of home appliances such as air conditioners and fans;
Smart Commercial: Location sensing, identifying the approach or departure of a person within a set location range, and promptly turning the screen on or off;
Smart Bathroom: Accurately controlling the automatic opening and closing of the toilet seat;
Smart Lighting: Recognizing and sensing the human body, accurately detecting its location, applicable to home lighting devices (motion-sensor lights, table lamps, etc.).
Dimension
HLK-LD2452:
HLK-LD2453:
