Overview

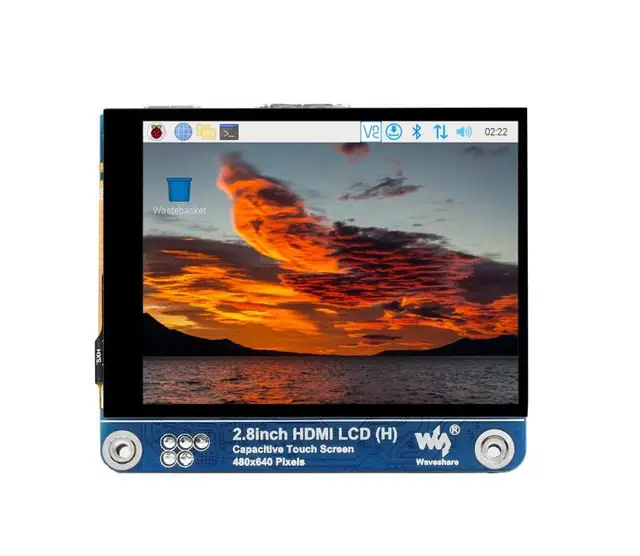

This product is a general-purpose 2.8-inch HDMI display with a resolution of 480 × 640, with a tempered glass capacitive touch panel, and a full lamination process.

It supports Raspberry Pi and Jetson Nano, and can also be used as a computer touch screen.

Features

• 2.8-inch IPS screen with a hardware resolution of 480 × 640.
• Onboard dual touch circuit, touch can be driven via USB(drive-free) touch interface or I2C interface of Raspberry Pi, 5-point touch, toughened glass capacitive touch panel, hardness up to 6H
• Use with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali / Retropie and WIN10 IoT.
• Use with Jetson nano, support Ubuntu.
• Use as a computer monitor, it supports Windows 11 / 10 / 8.1 / 8 / 7.
• Support backlight control, more power saving.

The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.

Device & System Support

Supports all versions of Raspberry Pi

for Jetson Nano and PC, only USB-C touch is available

Touch Control

1) up to 5-points touch, depending on the operating system.

Display

IPS Panel

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Jetson Nano AI Computer

Working With Mini PC

Appearance And Dimensions
